Products catalogue

The tools we make are compatible with press brake machines from Amada，Trumpf，Bystronic-Beyler，LVD，American，Yawei，SAFAN ，HACO，Yangli，Baykal，Gasparini，Ysd，ACL，ect. we put great importance into our precision- grinding for promise the production precision of the tools and get the approval from the domestic and foreign machine manufacturers and dealer. We all body heat treatment HRC47+/-3 and induction harden HRC52-60 to get the best result for your upper tools and lower dies.

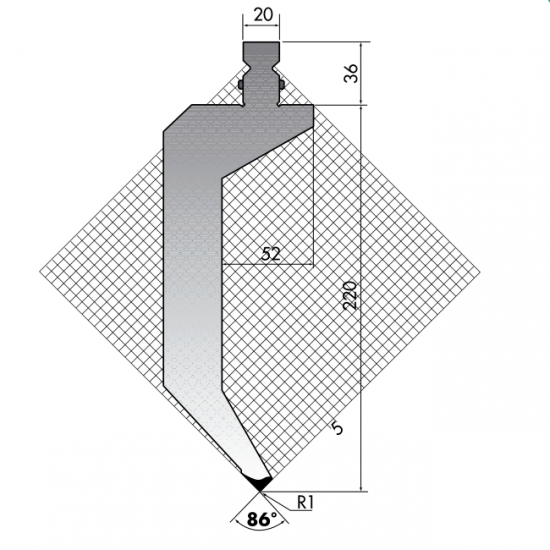

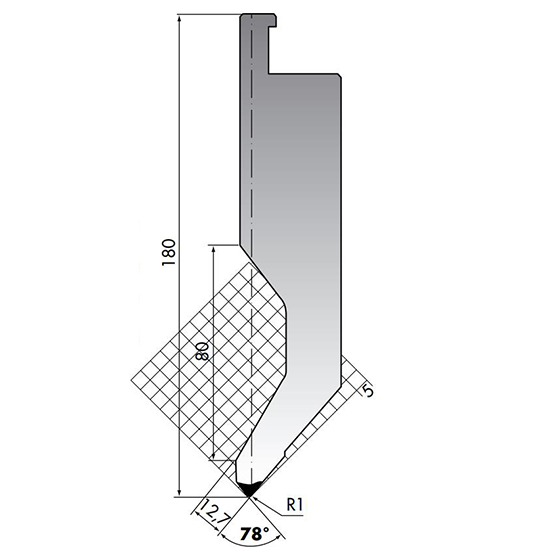

Amada System Punch

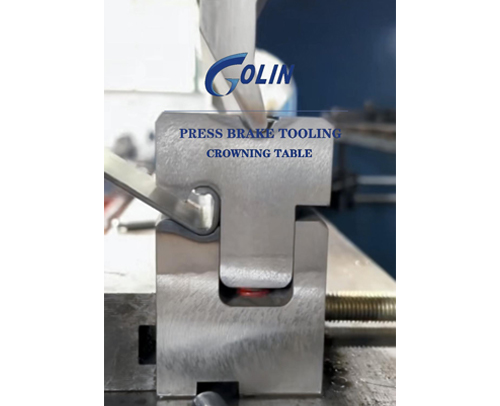

Amada System Press Brake Punches Golin manufactures high-strengthAmada system press brake toolingdesigned for precision sheet metal bending. Our press brake punches and dies are ground to strict tolerances, ensuring reliable accuracy, durability, and a long service life in demanding workshop environments. Available Tooling Angles & Profiles: We supply a comprehensive selection of upper punches to handle various bending profiles and sheet metal thicknesses: Standard Bending Angles:90°,88°,85°,75°,60°,45°,30°,26° Specialized Profiles: 28°/24°hemming tools, Z-Profile tools, and Radius tools. Standard Segmented Sizes (Full Set Data): To fit different bending lengths and box-bending requirements, we provide precise segmented top tools in the following configurations: 835mm Segmented Set: 100L, 10, 15, 20, 40, 50, 200, 300, 100R 805mm Segmented Set: 100L, 370, 10, 15, 20, 40, 50, 100, 100R 800mm Segmented Set: 100L, 10, 15, 20, 40, 50, 165, 300, 100R 795mm Segmented Set: 100L, 250, 20, 25, 30, 35, 40, 45, 50, 100, 100R 495mm Segmented Set: 170, 100, 50, 45, 40, 35, 30, 25 OEM & Wholesale Custom Solutions Whether you need standard catalog models or custom-engineered press brake tooling, Golin supports both OEM and wholesale orders with factory-direct pricing. Need help selecting the right punch profile? If you are unsure which punch matches your workpiece, pleasesend usyour bending details. Provide yourworkpiece size, plate thickness, required radius, bending angle, and material type, and our technical team will recommend the correct tool profile for your job. Contact us today for professional technical solutions and quick factory quotations!

read more
Amada System Lower Dies

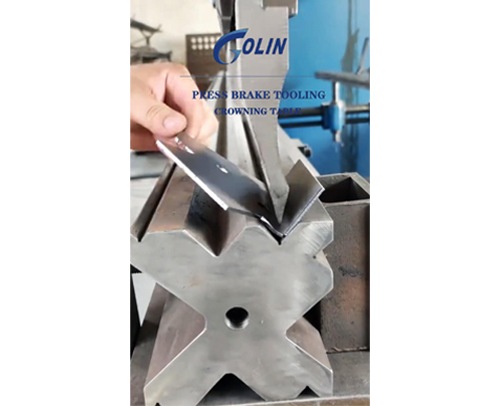

The press brake lower die have standard 2V die 90°,88°, 60°, 35°, 30°. Self centering 2V die 90°,88°,85°. Self centering 1V die 90°,88°, 85°,30°. T-V die H80,H120 88°,85°,80°,60°,45°,35°,30°,26°. 1V 85°,80°,70°,60°. special multi-V dies. There are many segments size , like 835mm seg(10,15,20,40,50,100,200,400), 805mm seg(100,370,10,15,20,40,50,200R), 795mm seg(100,250,20,25,30,35,40,45,50,200), 495mm seg(170,100,50,45,40,35,30,25) . If these segment size cannot meet your request, pls tell us you want. then we will make it for you. If you don't know how to choose the lower for you workpiece, pls provide your punch size, machine model and so on.

read more
Crowning Table

Press Brake Crowning Tables (Deflection Compensation System) When bending long workpieces, machine bed deflection often causes angle inconsistency and bowing. Golinmechanical crowning tablesdeliver precise deflection compensation across the entire bed length, ensuring uniform bending angles and perfect straightness without the need for manual shimming. Hand & Motor Drive Options We offer both manual and CNC-driven configurations to fit your budget and machine setup: Manual Crowning Table(By Hand):Adjusted via a hand crank with an easy-to-read mechanical digital indicator. CNC Motorized Crowning Table(By Motor):Driven by an electric motor that links directly to your CNC controller for real-time, automatic compensation. Standard & Custom Dimensions We supply a wide range of standard crowning beds to match common press brake lengths and die holders: 2500*95*90mm,3100*95*90mm,2500*180*100mm,3100*200*100mm,4000*220*100mm and others. Custom dimensions are available upon request. Need help selecting the right size? Send us your machine brand, model, and existing bed specs. Our technical team will recommend the exact size and mounting configuration for your workshop.

read more
LVD System

LVD press brake tooling is a leading bending tool for LVD strippit press brake, we custom made a comprehensive punch and dies, and European LVD tooling. This cnc punch press tooling includes punches, dies, adapters. It supports segmented, solid length, and half-length sizes. we have a wide range of LVD press brake punch and die selections. LVD tooling can deliver a quick, easy, and flexible job with advanced designs.

read more
Wila Style Press Brake Tools System

Wila Style (New Standard) Press Brake Tooling Golin manufactures heavy-duty Wila style press brake tools for high-precision CNC bending. Our New Standard style punches and dies are 100% compatible with Wila and Trumpf clamping systems, designed to cut down your tool setup times and ensure long-term bending accuracy. Quick-Locking & Safety Mechanisms To protect your operators and speed up tool changes, our tooling system uses two different safety designs based on tool weight: Integrated Quick Locking (< 12kg): For segmented tools and lightweight standard lengths. Operators can click tools vertically into the clamp from the front. This speeds up daily tool changeovers. Safety Pin Mechanism (> 12kg): Standard on all full-length or heavy tools exceeding 12kg. A solid steel safety pin prevents the tool from accidentally dropping during loading or unlocking. Technical Highlights: Premium Material: CNC precision-machined from high-grade alloy steel (42CrMo / 42CrMo4). Maximum Durability: All critical working surfaces areinduction hardened(48-52 HRC) to ensure wear resistance and a long-lasting service life. Precision Guaranteed: Strict tolerance control within +/-0.02mm to achieve perfect alignment and bending consistency. Compatibility Matrix Tooling System Compatible Machine Clamping / Brands Main Application Wila Style New Standard Punch Wila, Trumpf, Prima Power, SafanDarley Top precision air bending Wila Style Bottom Die New Standard Crowning Tables & Bed Non-marking & Multi-V bending Wila Style Adapters Amada/European to Wila Clamping Conversion System integration

read more

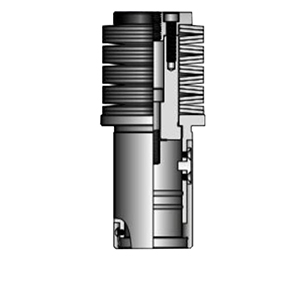

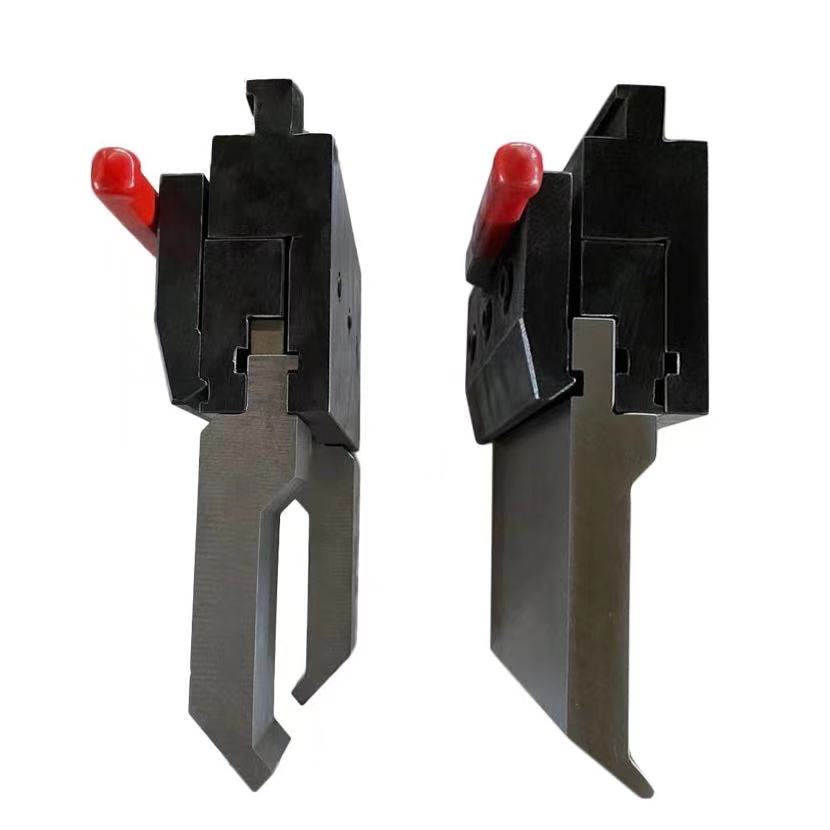

Press Brake Tooling Clamp

Golin specializes in the design and manufacture of high-quality press brake clamping systems, providing a wide range of clamping solutions for different press brake brands and models. Our product range includes standard clamps, quick clamping systems, hydraulic clamping systems, and other customized solutions to meet various production requirements for efficiency, precision, and safety. Manufactured from premium materials, Golin clamping systems offer stable locking performance, fast tool changing, easy operation, and long service life. They are widely used in sheet metal fabrication, elevator manufacturing, automotive parts production, stainless steel processing, and many other industries. We also support customized solutions according to customers’ machines and production needs.
