Also known as Z bends or Joggles, the Offset punch and die set is able to make two bends at the same time. This is the solution for applications requiring materials to be joined together or when you need to make a second bend that will not interfere with the first bend.
Advantages ▶ Easy and quick bending of boxes ▶ Easy removal of the finished profile ▶ Compatible with punches/top tools ▶ Individual production possible
Advantages Production in two or three strokes Reducing of marks through spring loaded hold-down-device Active components are hardened High repeatability through integrated backgauge Functional test and adjustment through test bends - with your sample sheets Suitable For Material thickness up to 4,0 mm minimum inside Ø: 2,5 mm x material thickness for steel and aluminium 3,0 mm x material thickness for stainless steel
Tonnage 150 kN/m max. Material 42Cr: 900-1150 N/mm2 Advantages - Bending of closed profiles can be produced - Large Channel Profiles can be produced - Easy Removal - Individual Production
Press brake rolla-v dies without scratch, it's best to put the film on the workpiece surface when you bend. and we will recoomend the suitable roll-v die size for you according to the plate you bend.
Shim Style Adjustable Dies Adjustable lower dies could be considered to be one of the most versatile additions to a press brake. With this type of tool, openings can be arranged from 6.35mm to 381mm. Spacers are provided to produce the required opening. Slotted spacers allow for easy removal to change the die opening. When not in use, spacers are positioned at sides of the die block. These dies can be furnished in solid lengths or sectioned for easier handling.
The stright blade size:835*146*26mm,90degree. the material is 42CrMo4, hardness is HRC47+/-3
The stright blade size:835*175*40mm,60degree. the material is 42CrMo4, hardness is HRC47+/-3
The stright blade size:835*146*26mm,90degree. the material is 42CrMo4, hardness is HRC47+/-3
The Amada press brake tooling straight blade size:835*145*32mm,60degree. the material is 42CrMo4, hardness is HRC47+/-3

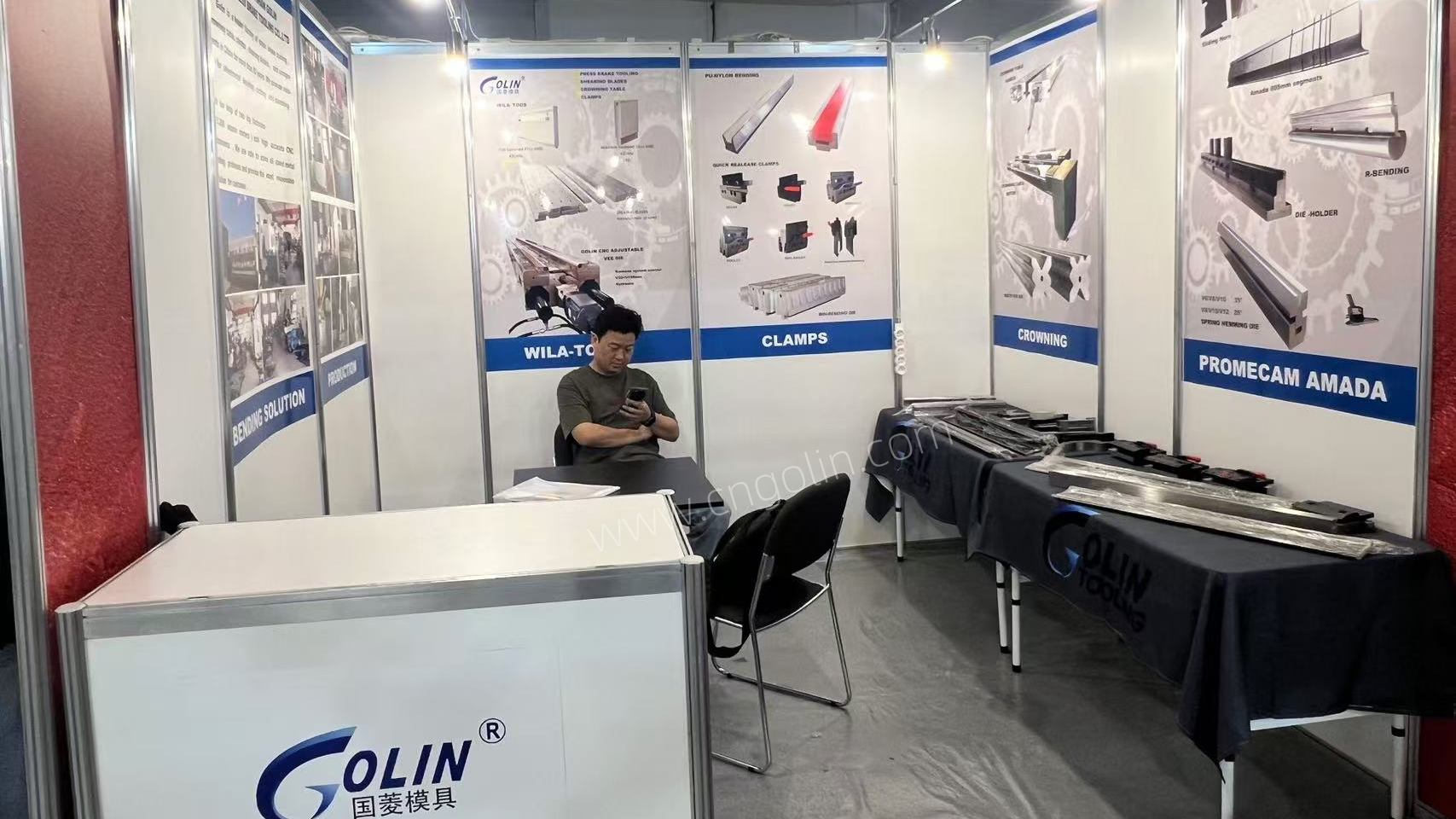

Dear customers, partners, and industry colleagues, In this era filled with opportunities and challenges, GoLin Company remains committed to quality and innovation, providing top-notch bending machine molds to clients worldwide. To further enhance our...
read more
Quality tools and machinery are the backbone of the South African manufacturing industry which is why Machine Tools Africa 2020 has been designed to showcase the very latest technology developments, machinery, products, services and solutions in this...
read more
If you were to walk into the press brake department at a fabricator 20 years ago, you would see a very different picture. If a machine produced a variety of new, low-quantity jobs over a shift, it spent most of its time being set up and relatively li...
read more
Chances are pretty good that most of us have used a bench vise to do things far beyond its intended use. That’s understandable, as the vise may be the most powerful hand tool in many shops, capable of exerting tons of pressure with the twist of your ...
read more
Maanshan Golin Press Brake Tooling Co., ltd, was founded in 2003 and located in the Chinese cutting tools first town--- Bowang town. more than 100 workers, 20years manufacture experience, 15 years gold supplier on alibaba. The company is covering an ...
read morePlease read on, stay posted, subscribe, and we welcome you to tell us what you think.
