Also known as Z bends or Joggles, the Offset punch and die set is able to make two bends at the same time. This is the solution for applications requiring materials to be joined together or when you need to make a second bend that will not interfere with the first bend.
Advantages ▶ Easy and quick bending of boxes ▶ Easy removal of the finished profile ▶ Compatible with punches/top tools ▶ Individual production possible
Advantages Production in two or three strokes Reducing of marks through spring loaded hold-down-device Active components are hardened High repeatability through integrated backgauge Functional test and adjustment through test bends - with your sample sheets Suitable For Material thickness up to 4,0 mm minimum inside Ø: 2,5 mm x material thickness for steel and aluminium 3,0 mm x material thickness for stainless steel
Tonnage 150 kN/m max. Material 42Cr: 900-1150 N/mm2 Advantages - Bending of closed profiles can be produced - Large Channel Profiles can be produced - Easy Removal - Individual Production
Press brake rolla-v dies without scratch, it's best to put the film on the workpiece surface when you bend. and we will recoomend the suitable roll-v die size for you according to the plate you bend.

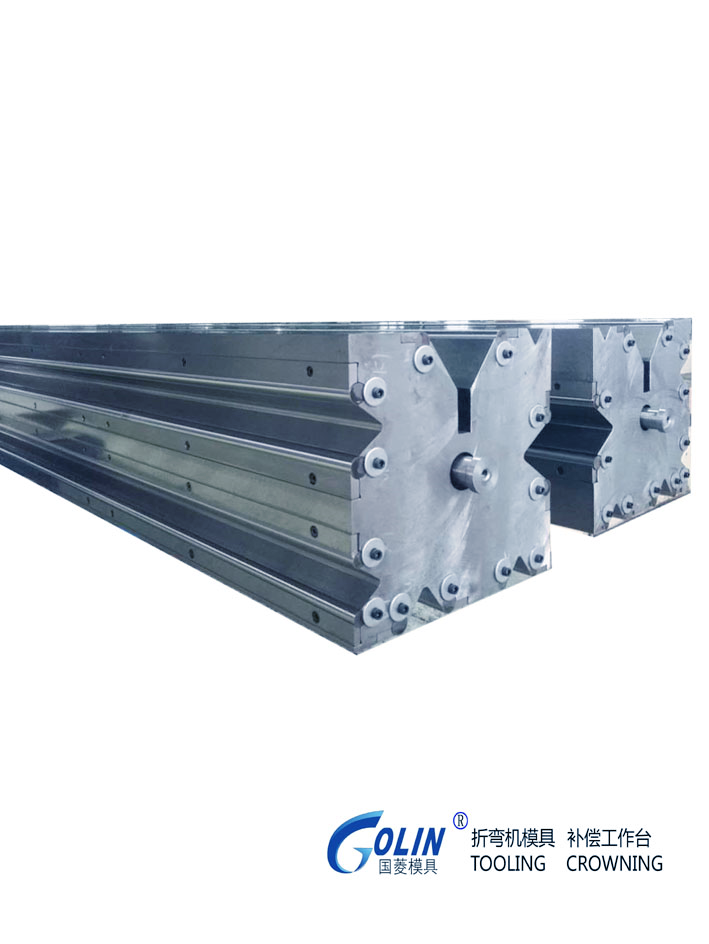

Shim Style Adjustable Dies Adjustable lower dies could be considered to be one of the most versatile additions to a press brake. With this type of tool, openings can be arranged from 6.35mm to 381mm. Spacers are provided to produce the required opening. Slotted spacers allow for easy removal to change the die opening. When not in use, spacers are positioned at sides of the die block. These dies can be furnished in solid lengths or sectioned for easier handling.

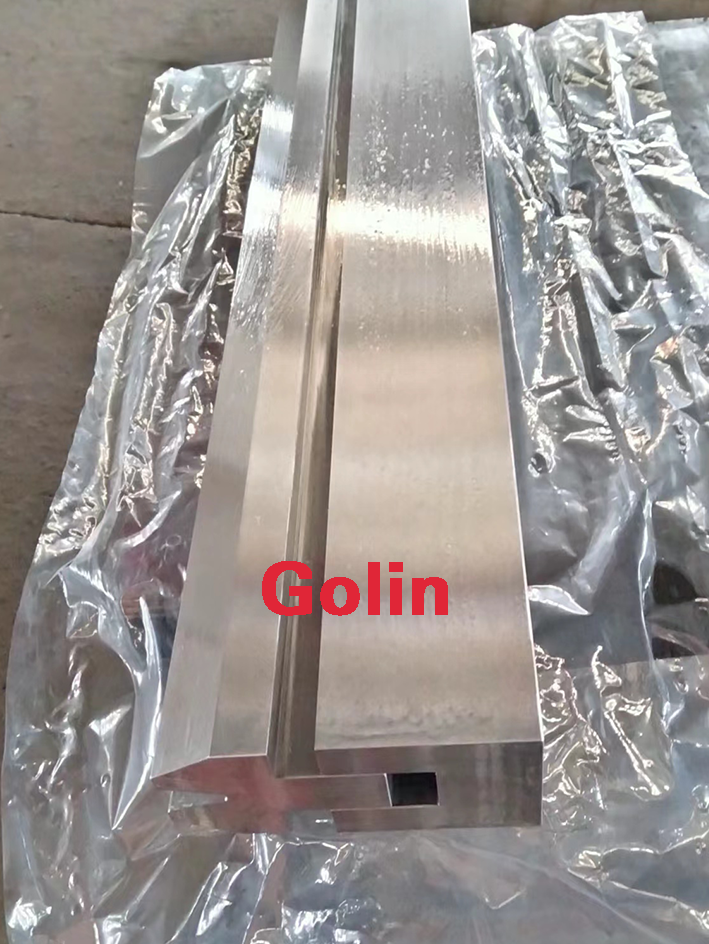

The stright blade size:835*146*26mm,90degree. the material is 42CrMo4, hardness is HRC47+/-3
The stright blade size:835*175*40mm,60degree. the material is 42CrMo4, hardness is HRC47+/-3
The stright blade size:835*146*26mm,90degree. the material is 42CrMo4, hardness is HRC47+/-3
The Amada press brake tooling straight blade size:835*145*32mm,60degree. the material is 42CrMo4, hardness is HRC47+/-3

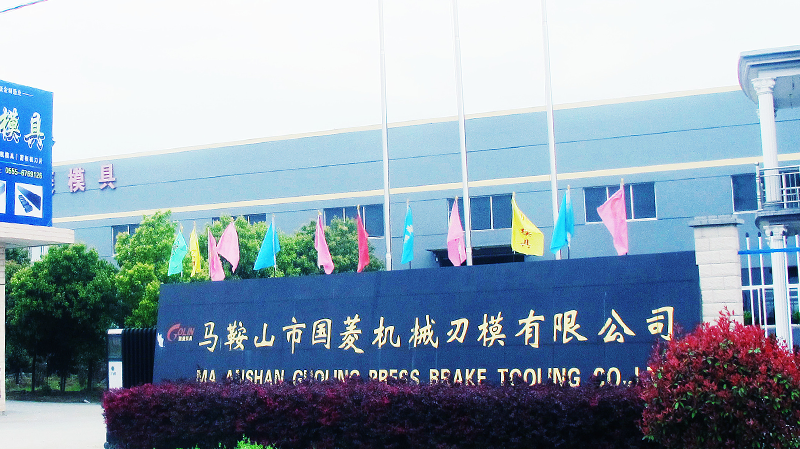

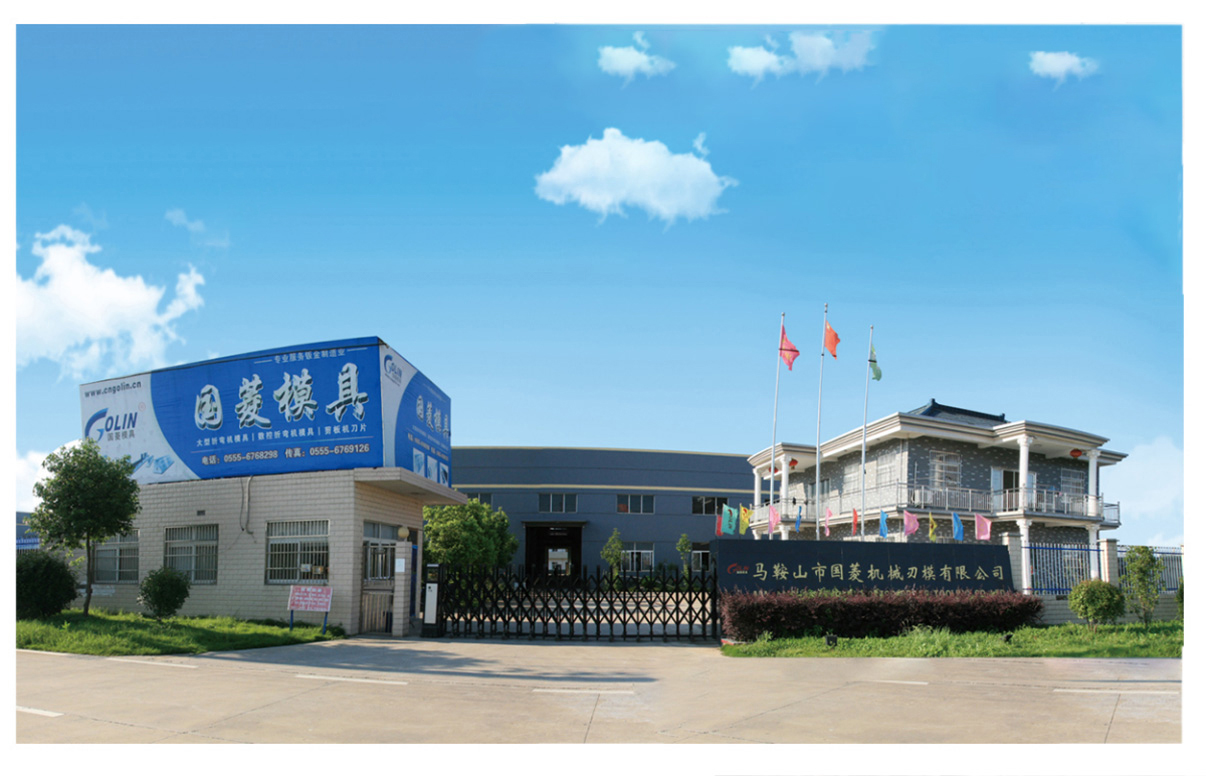

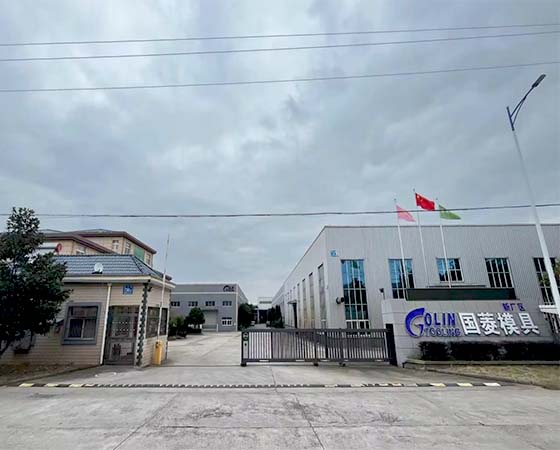

Maanshan Golin Press Brake Tooling Co., ltd, was founded in 2003 and located in the Chinese cutting tools first town--- Bowang town. more than 100 workers, 20years manufacture experience, 15 years gold supplier on alibaba.

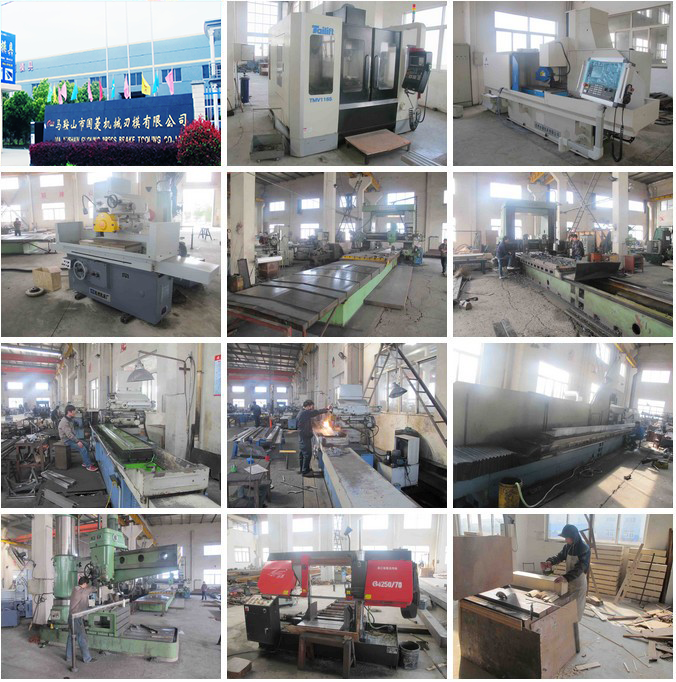

The company is covering an area of 12000 square meter, the modern factory 8000 square meter. we focus on improving the technical design, manufacturing process, quality and precision since the company built.and the professional service quality be approved and trust by many sheet metal users and bending machine manufacturers in the domestic and foreign.

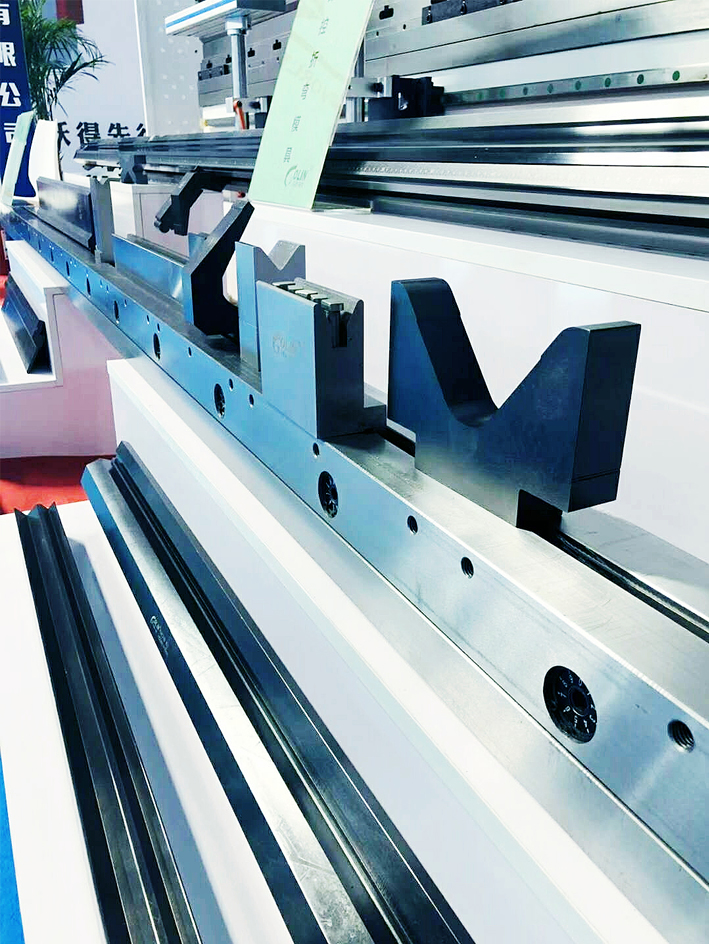

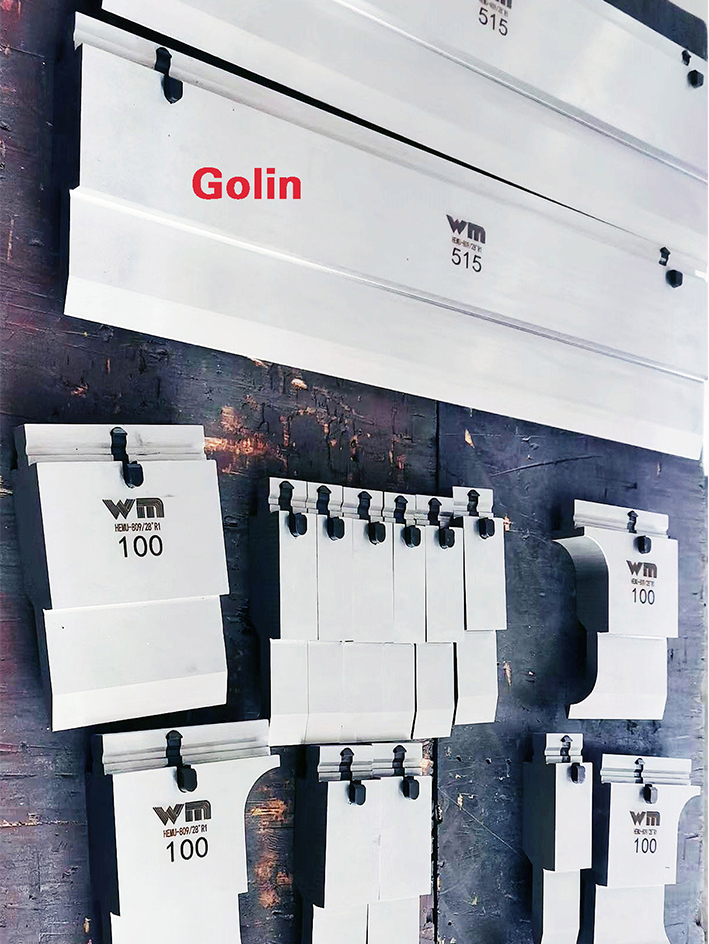

Golin is in the field of sheet metal processing, and is engaged in the production and sale of bending tools and crowning tables. Golin can supply punches and dies for any type of press brake. These tools are made of hardened and ground high quality steels C45 and 42CrMo. Our product range includes tool types such as: Amada / Promecam, Trumpf / Wila, Bystronic/Beyeler, LVD type, American type, Gasparini Type, Colgar Type，Colly Type，Ajial-Axial Type, Hämmerle-bystronic Type，etc. Golin has an in-house R&D department specializing in designing technologically advanced solutions, with the support of our technical department we are able to design and supply special punches and dies and research the right solution for your bending project. The tools our company supplies for press brakes are efficient and durable, thanks to the ability to use cutting-edge technology and the guarantee of highly qualified employees. Reliability and competitive pricing are two other distinguishing features of our bending tools.
