Also known as Z bends or Joggles, the Offset punch and die set is able to make two bends at the same time. This is the solution for applications requiring materials to be joined together or when you need to make a second bend that will not interfere with the first bend.
Advantages ▶ Easy and quick bending of boxes ▶ Easy removal of the finished profile ▶ Compatible with punches/top tools ▶ Individual production possible
Advantages Production in two or three strokes Reducing of marks through spring loaded hold-down-device Active components are hardened High repeatability through integrated backgauge Functional test and adjustment through test bends - with your sample sheets Suitable For Material thickness up to 4,0 mm minimum inside Ø: 2,5 mm x material thickness for steel and aluminium 3,0 mm x material thickness for stainless steel
Tonnage 150 kN/m max. Material 42Cr: 900-1150 N/mm2 Advantages - Bending of closed profiles can be produced - Large Channel Profiles can be produced - Easy Removal - Individual Production
Press brake rolla-v dies without scratch, it's best to put the film on the workpiece surface when you bend. and we will recoomend the suitable roll-v die size for you according to the plate you bend.
Shim Style Adjustable Dies Adjustable lower dies could be considered to be one of the most versatile additions to a press brake. With this type of tool, openings can be arranged from 6.35mm to 381mm. Spacers are provided to produce the required opening. Slotted spacers allow for easy removal to change the die opening. When not in use, spacers are positioned at sides of the die block. These dies can be furnished in solid lengths or sectioned for easier handling.
The stright blade size:835*146*26mm,90degree. the material is 42CrMo4, hardness is HRC47+/-3
The stright blade size:835*175*40mm,60degree. the material is 42CrMo4, hardness is HRC47+/-3
The stright blade size:835*146*26mm,90degree. the material is 42CrMo4, hardness is HRC47+/-3
The Amada press brake tooling straight blade size:835*145*32mm,60degree. the material is 42CrMo4, hardness is HRC47+/-3
The quick locking system of the Willa press brake tool can make it easier for customers. For this quick locking system, the usable weight is less than 12kg, usually for segmented tools and some standard lengths.
If the weight exceeds 12kg, a safety pin is usually provided, usually applied to the entire tool.
product origin:
Maanshanbrand:
Golinshipping port:
Shanghai portcolor:
Silverlead time:
15-20 days after receiving the depositpayment:
T/T, Western union

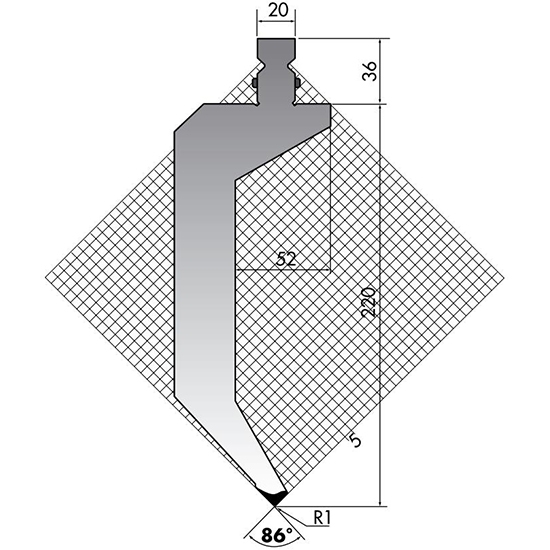

Size: 835 * 220 * 75mm(customizable size)
Material: 42CrMo
Hardness: HRC47+/-3
Quench: Full body heat treatment
Package: Multi plywood
Golin is in the field of sheet metal processing, and is engaged in the production and sale of bending tools and crowning tables. Golin can supply punches and dies for any type of press brake. These tools are made of hardened and ground high quality steels C45 and 42CrMo. Our product range includes tool types such as: Amada / Promecam, Trumpf / Wila, Bystronic/Beyeler, LVD type, American type. Golin has an in-house R&D department specializing in designing technologically advanced solutions, with the support of our technical department we are able to design and supply special punches and dies and research the right solution for your bending project. The tools our company supplies for press brakes are efficient and durable, thanks to the ability to use cutting-edge technology and the guarantee of highly qualified employees. Reliability and competitive pricing are two other distinguishing features of our bending tools.
SIZE:
Golin Wila style press brake tooling's standard length is:
Three kinds of 500mm, 835mm and L1100mm. According to the length of the press brake machine worktable, it is used in combination.

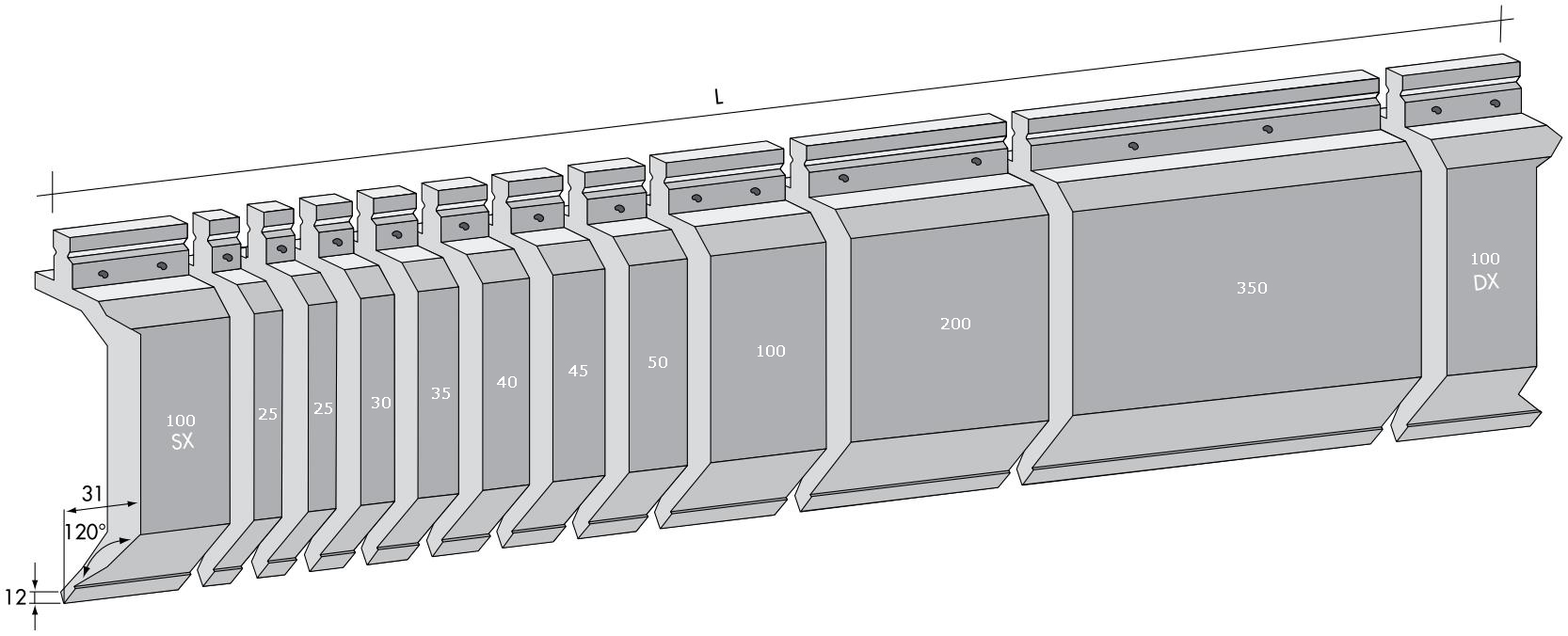

The standard segmentation size is:
Upper die: 100 (left) 25, 25, 30, 35, 40, 45, 50, 100, 200, 350, 100 (right) = 1100mm (set)
■In addition to the above standard length, if you need to customize a special length, please explain.
FAQ
1. Q: Are you a factory or trading company? How is you factory extrusion experience?
A: We are a factory. 15 years Manufacturing experience.Leading supplier in Maanshan city.
2. Q:Can you put my brand logo on these products?
A:Yes we can.
3. Q:What is the Minimum Order Quantity (MOQ) for your OEM service?
A:MOQ is 1pcs.
4. Q:When can you ship the products after we make payment?
A:Production time is normally 15-25 days.
The quick locking system of the Willa press brake tool can make it easier for customers. For this quick locking system, the usable weight is less than 12kg, usually for segmented tools and some standard lengths. If the weight exceeds 12kg, a safety pin is usually provided, usually applied to the entire tool.
Standard 4v dies,V16,V22,V35,V50 with 85 degree and 88degree. the size is 60*60mm, material 42CrMo4 .the weight is 15.7kg. the material is 42CrMo4, hardness is HRC47+/-3.
Metal shear blades size is 1100*80*20mm, the blades material are： Cr12MoV 、H13K、6CrW2Si、9CrSi，etc. hardness:HRC52-60.
Bystronic Beyeler style press brake Tooling is a new tool system that maintains high quality segmented tool characteristics and increases tool holding capacity. The system is 100% compatible with the Bystronic bending database in the machine control system.
The stright blade size:835*175*40mm,60degree. the material is 42CrMo4, hardness is HRC47+/-3
This is standard press brake punch,usually the height is 65 and 67mm.the material is 42CrMo / C45 and we can make induction harden or all body heat treatment for customers. For the segments size, we can make it according to the customer's requirements. if no request , we will make 835mm standard segments size for you,100L,10,15,20,40,50,200,300,100R.
Bystronic Beyeler style press brake Tooling is a new tool system that maintains high quality segmented tool characteristics and increases tool holding capacity. The system is 100% compatible with the Bystronic bending database in the machine control system.
QUALITY AND PRECISION
The quick locking system of the Willa press brake tool can make it easier for customers. For this quick locking system, the usable weight is less than 12kg, usually for segmented tools and some standard lengths. If the weight exceeds 12kg, a safety pin is usually provided, usually applied to the entire tool.
Size:835*60*80mm(Can be customized according to customers' needs) Material:42CrMo S45C Hardness:HRC44-50 Package:Multi playwood
LVD press brake tooling is a leading bending tool for LVD strippit press brake, we custom made a comprehensive punch and dies, and European LVD tooling. This cnc punch press tooling includes punches, dies, adapters. It supports segmented, solid length, and half-length sizes. we have a wide range of LVD press brake punch and die selections. LVD tooling can deliver a quick, easy, and flexible job with advanced designs.
The gooseneck punch size:835*197*92mm,88degree. the material is 42CrMo4, hardness is HRC47+/-3. and height 197mm,width 92mm. can be made according to customer's request.
Please read on, stay posted, subscribe, and we welcome you to tell us what you think.
